USG Boral Silenz™ range of high sound absorption metal ceiling and wall panels comes in a monolithic plain surface with ultra-micro perforation of less than 0.04mm (H) x 0.4mm (L) and non-combustible properties.
With a tortuous surface that creates a short tunnel phenomenon, Silenz™ acoustic metal ceiling and wall panels can effectively achieve high sound absorption without the use of an acoustical felt.
USG Boral Silenz™ is also extremely durable yet maintenance free, making it ideal for a large range of applications.
Features and Benefits
- High sound absorption (NRC of 0.7 & above)
- Non-combustible
- Non- asbestos
- Clean surface
- Environmentally friendly
- Monolithic plain surface
- Lightweight
- Water-resistant
Mould-resistant - Versatile
Dust proof - Prolonged Performance
Absence of acoustical felt
Applications

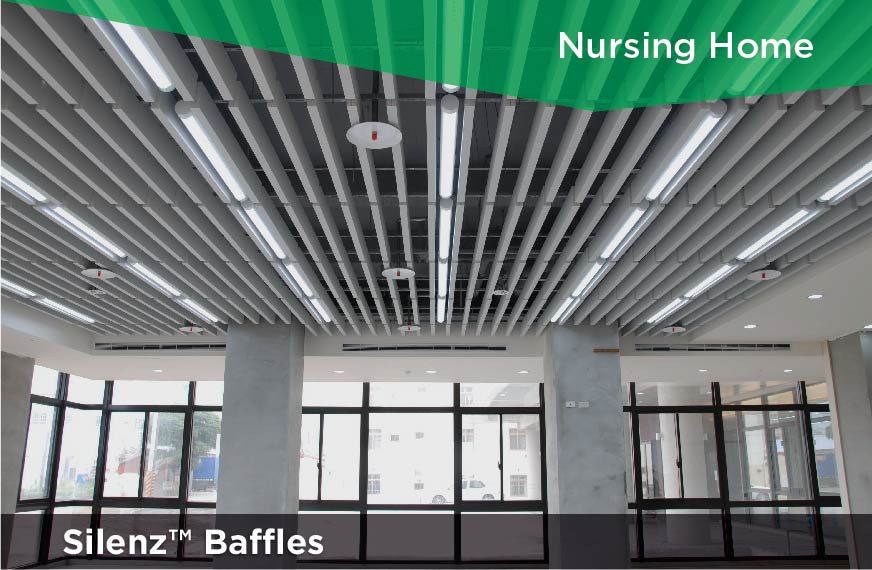

- Hospitals/Nursing Homes/Clinics
- Pharmaceuticals
- Commercial Offices

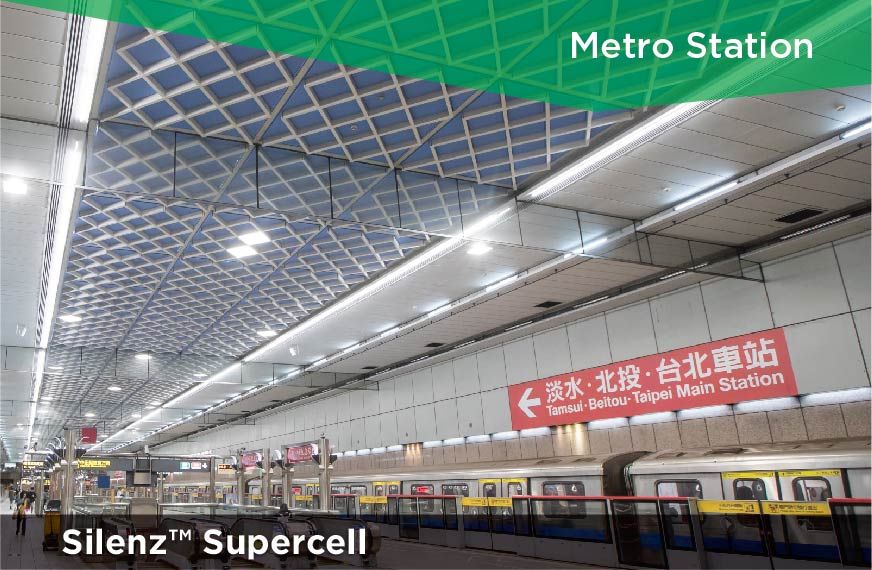

- Public Transportation
- Electronic & Food production (cleanroom)

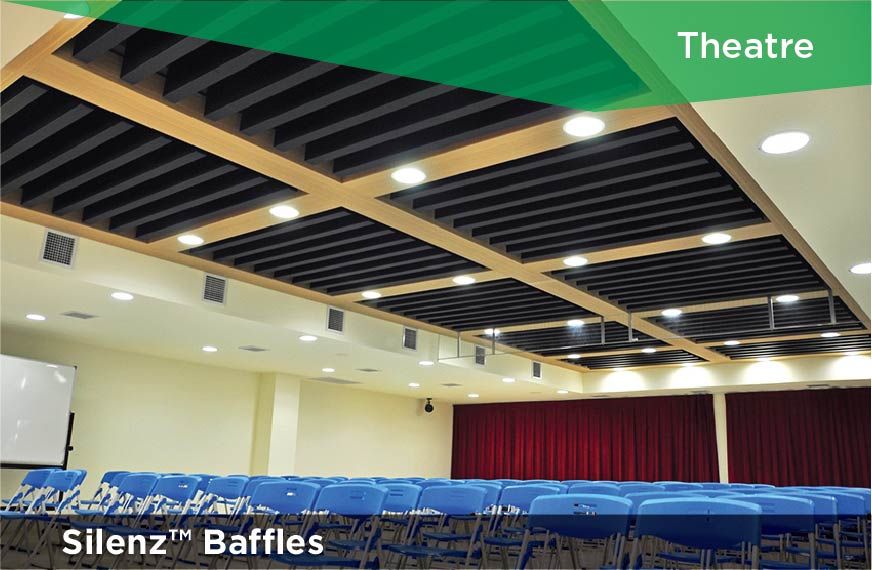

- Lecture Theatres/Auditoriums

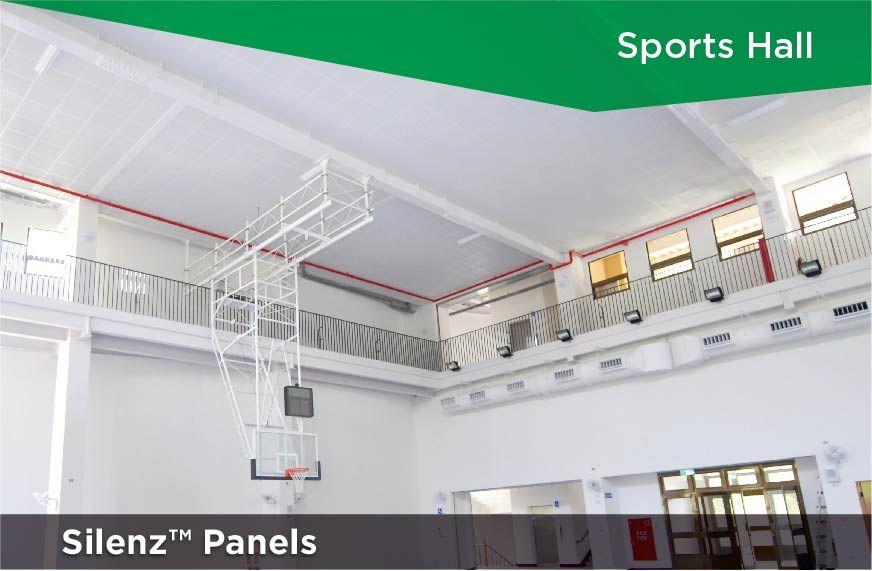

- Sports Hall

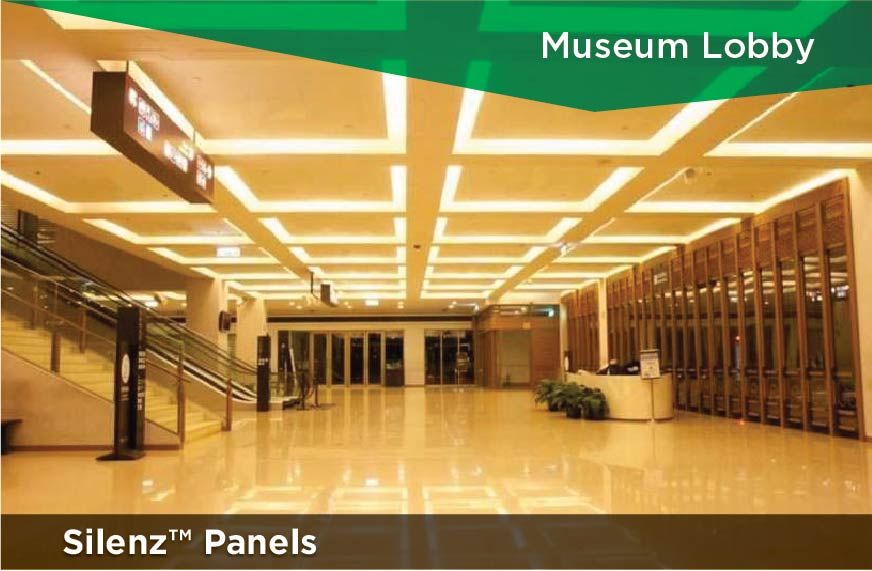

- Museums
Additional Information
Physical Properties
- Surface Appearance: Plain, flat monolithic
- Thickness: 1.0mm
- Perforation Diameter: Ultra-Micro less than 0.04mm (H) x 0.4mm (L) = 0.016mm2
- NRC: NRC of 0.7 and above
- SAA: SAA of 0.68 and above
- Finishing: PVDF to standard white or powder coating
- Coating: 30mic thick of waterproofing paint without clogging.
Ultra-micro perforations composition: asbestos-free, non-radioactive and contains no heavy-metal materials. - Durability: Cleanable surface & easy maintenance.
Water and dust-resistant
Standard panels that comes in different installation systems
Panel Dimensions (mm):
600 x600, 600 x1200
Slimmer panels for a different aesthetic feel
Panel Dimensions (mm):
30x50, 30x100, 30x150, 30x200, 30x280, 50x100, 50x150, 50x200
Oversized plain square panels for a different aesthetic feel
Panel Dimensions (mm):
600x600

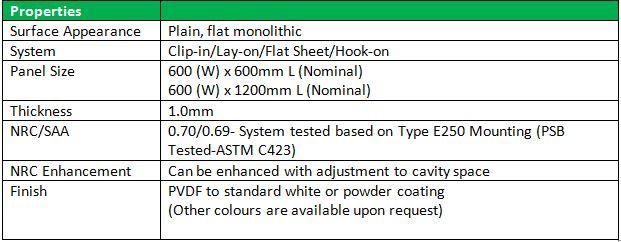

Table of properties for Silenz™ Panel

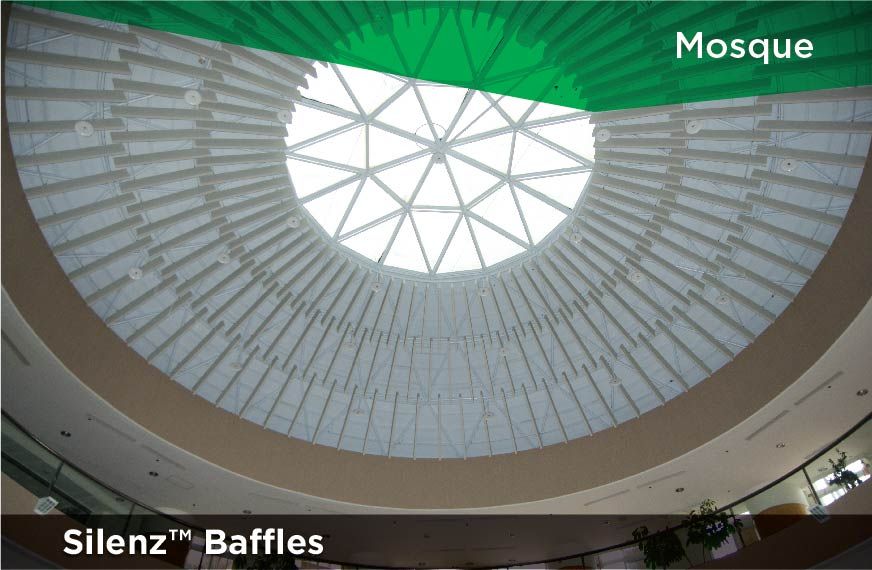

Table of properties for Silenz™ Baffles

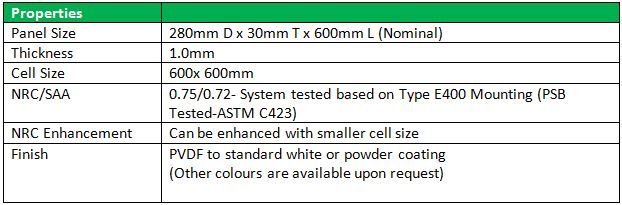

Table of properties for Silenz™ Supercell
Features and Benefits
- Open plan ceiling design with bolt on panels
- Can be used as a design accent
- Can be installed on vertical or curved spaces
- Bolted bracket holds panels in place
- Panel spacing and ends are adjustable to suit ceiling and wall curvatures
- 45 colours and 26 wood look options available
- Individually replaceable panels
- Suitable for indoor use
Applications
- Entertainment Venues
- Galleries
- Lounges
- Foyers
- Corridors
- Commercial Spaces
