ProLine

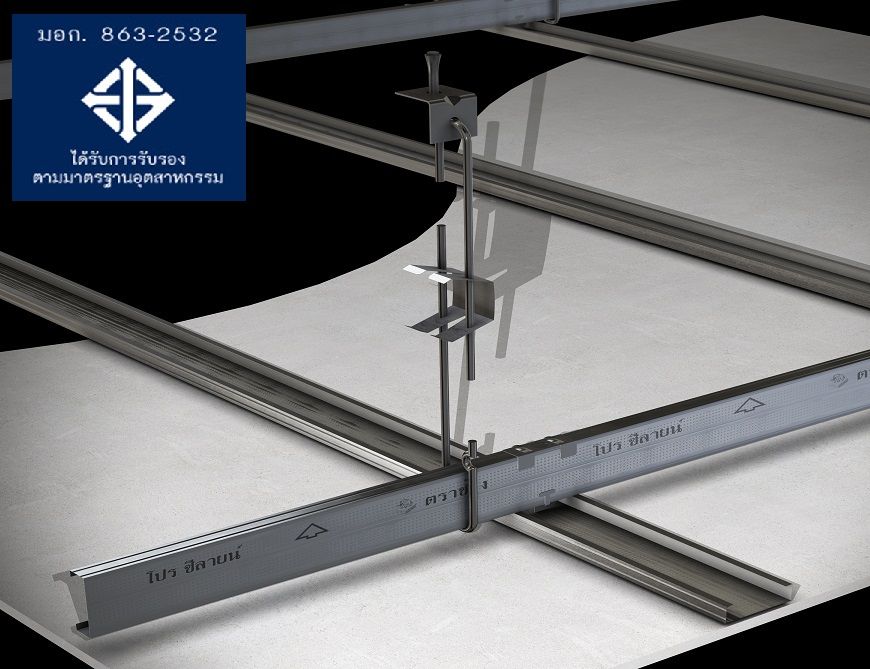

The ProLine Elephant brand system conforms to TIS 862-2532. The system is designed to be strong, durable and safe. Every part of ProLine system design is equably shaped for the quick and easy installation. Safety is the main priority for choosing this great quality and standardized material, which is rust resistant.
Special Features
- Conforms with Thai Industrial standards (TIS) as a whole system.
- Enhance ceilings, making them smooth and durable.
- Stronger and five times than standard concealed ceiling systems.

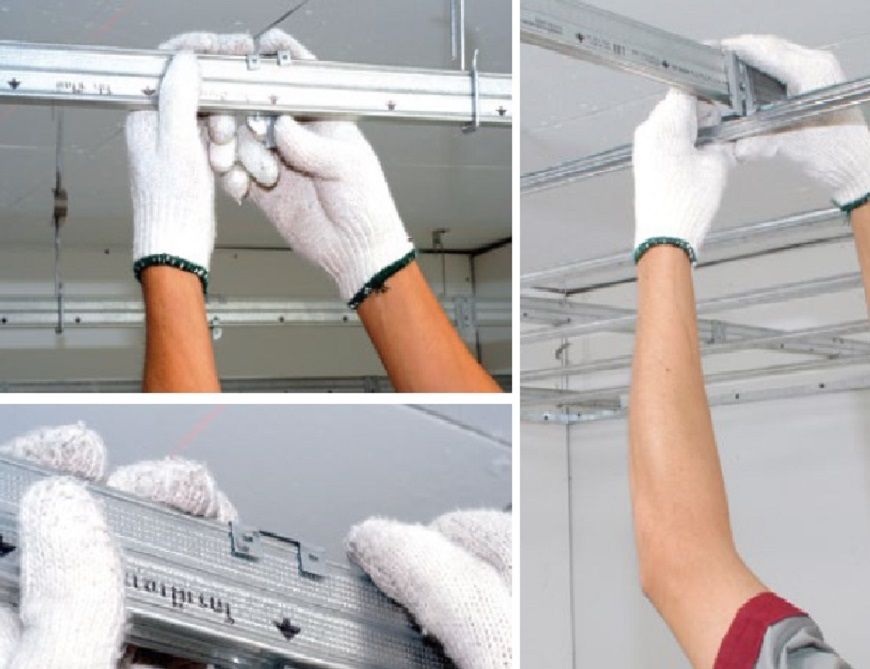

- Quick and easy to install.
- The frame includes a useful distance gauge that indicates the distance every 10 cm, which provides convenience and accuracy for every installation.
- The main frame is suitably designed to be used for decorative and stepped ceilings.
- Suitable for internal areas.
*Loading capacity of standard concealed frame system is required at minimum 30 kg per meter.
Physical Properties
- Standard : TIS 862-2532 (Thai industrial standards)
- Material : Hot Dip Galvanized Steel ,
TIS 50-2548 or JIS G3302 - Thickness : 0.52 mm.
- Zinc coating : 220 g / m2
- Size : 15 x 37 mm.
- Weight : 1.2 kg per stud
Applications
- Suitable for smooth ceilings in homes, apartments, interior public spaces, large ceilings, corridors, and garages etc.

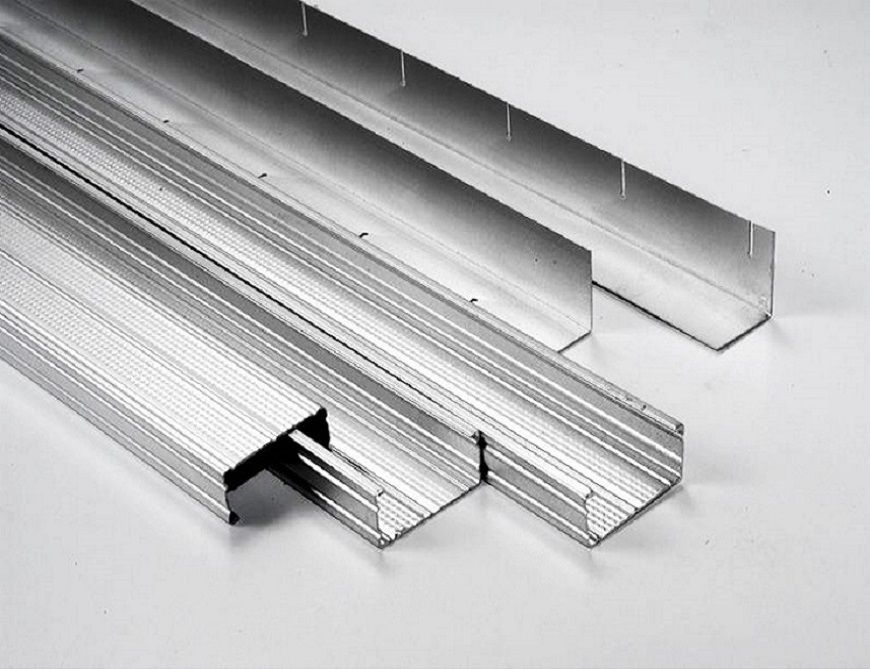

Size
- ProLine Stud : 15 x 37 x 4000 mm.
- Pro Wall Angle : 25 x 24 x 2400 mm.
