X-Bloc

X-Bloc

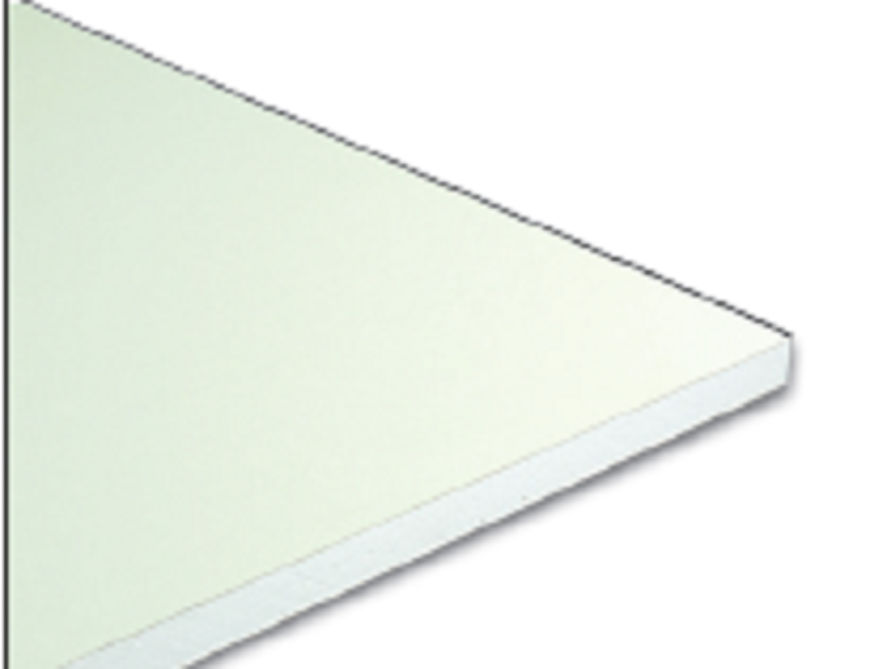

X-Bloc gypsum board provides x-ray radiation protection features specially designed for x-ray operation rooms.

X-Bloc is composed of Barytes, which is lead-free. The board has been designed for wall systems that require high efficiency x-ray radiation protection. It can be used with concrete plastering and provides a seamless wall that can prevent X-rays radiation as efficiently as lead reinforcing wall systems.

Special Features

  • Provides x-ray radiation protection.
  • Non-toxic; does not contain any lead components.
  • Provides sound insulation up to 54 dB (with the installation of 3-layer of X-Bloc board with fiberglass sound insulation).
  • Provides fire resistance up to 45-60 minutes (depending on X-Bloc board layers).
  • As easy to install as general gypsum board.
  • Reduces the complex process of installation; does not require any lead installation in order to protect x-ray radiation.
Physical Properties
  • Dimensions : 1200 x 2400mm.
  • Thickness : 13mm.
  • Edge : Tapered.
  • Paper Colour : Ivory front.
    : Brown back.
  • Average Weight : 17 kg / sqm.
Sustainability
  • Environmentally friendly and recyclable.
Applications

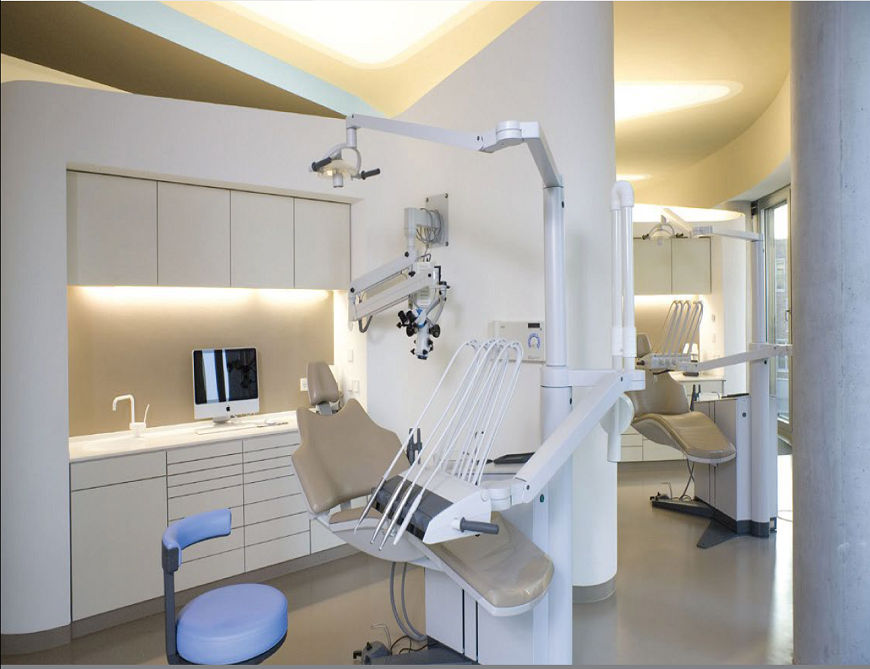

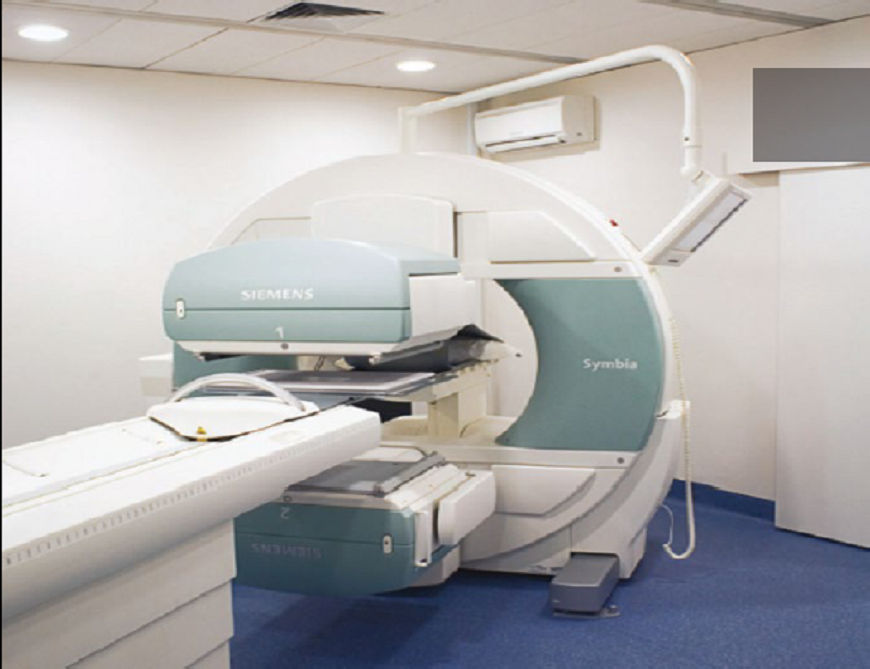

  • X-Ray Screening Rooms in Hospitals, dental labs and veterinary clinics.
Size
  • 1200 x 2400 x 13 mm.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Siam Gypsum representative for further assessment.
