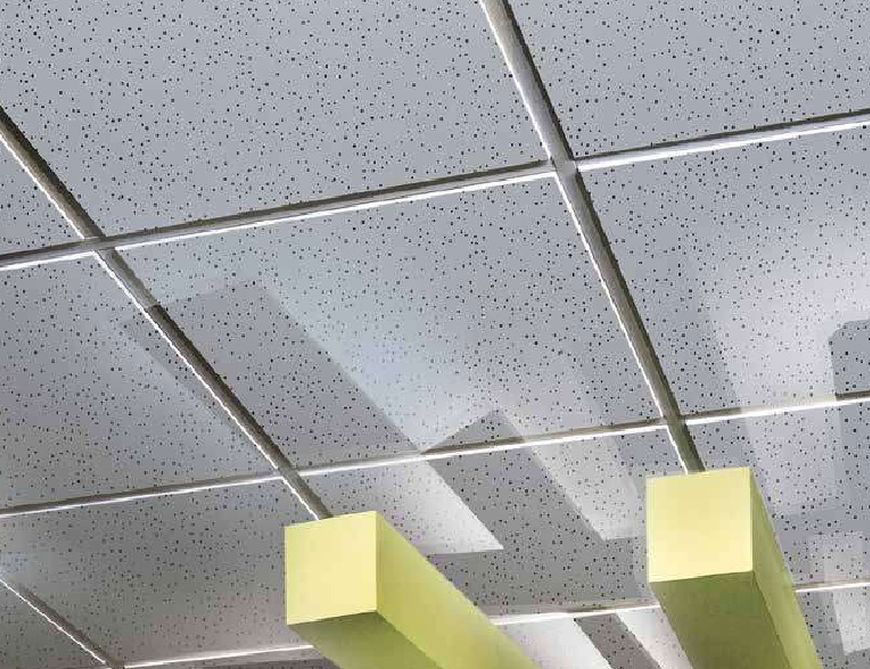

Pin PerfTM ClimaPlusTM
Pin PerfTM ClimaPlusTM is a fine acoustic panel that creates a clean and simple look in a professional setting.
A non-directional pattern offers a cleaner look, with fast and more efficient installation.
Meets low-emitting emission test criteria prescribed by the Singapore Green Building Council (SGBC) following ASTM D5116-06 testing methods.
Special Features
- Fine, coarse and random perforations.
- ClimaPlus 30-year lifetime system warranty to withstand temperature and humidity conditions up to 49°C/99% relative humidity without visible sagging when used with a USG T-bar grid suspension system.
- Excellent sound absorption and protection.
- Reduce thermal transfer and energy loss.
- Excellent light reflective finish reduces light fixtures and energy use with up to 80%.
- Non-combustible.
- Lightweight, construction cost saving.
- Contains a broad-spectrum antimicrobial additive on the face and back of the panel that provides resistance against the growth of mold and mildew.
- Available in optimized recycled content formulations to help maximize LEED recycled content contribution.
Physical Properties
- Panel size: 593 x 593mm., 593 x 1194mm.
- Thickness: 16mm.
- Grid Spacing: 600 x 600mm., 600 x 1200mm.
- Edge Profile(s): Square edge, Shadowline Tapered, Fineline Bevel
- Noise Reduction Coefficient (NRC): 0.60
- Ceiling Attenuation Class(CAC) : 33-35 dB
- Light Reflection (LR): 0.88
- Thermal Resistance : R-1.7
- Fire Resistance : Class A : Flame Spread 25, Smoke developed : 50
- Weight: 4.08 - 4.18 kg / M2
- Sustainability: up to 45% recycled material.
Applications
- Offices
- Retail stores
- Schools
- Showrooms
- Hospitals
- Airports
- Corridors
