SSS11 Acoustic - Standard

Introduction

This partition system developed to meet the requirements of Soundproof.

Suitable to applied at:

  • Hotel Corridor
  • Apartment partition wall
  • Library
  • Music Studio
  • Any other area that require soundproof

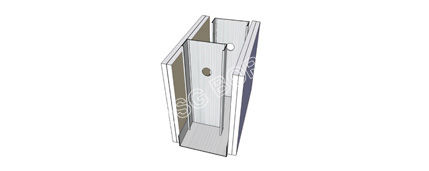

Supporting Material:

  • Frame: JayaBMS Wall Track, JayaBMS C Stud (Thickness min. 0,5mm BMT), JayaBMS Deflection Head Track
  • Lining: 2 layer  of Soundstop 12mm (2 sides)
  • Jointing: JayaCompound as Jayaboard recommendation.

Use Hitung Material fiture to help you figure total materials needed.

Specification:

  • Fire Rating: (FRL -/60/60).
  • Acoustic Rating: STC 50 (no insulation), STC 63 (insulation 60kg/m3)
  • Weight: 47 Kg/m2
  • Grade (BS 5234): Medium Duty

Notes:

  • All the materials above calculated based on a room with a size of (3 x 33.33m).  Another room sizes should be considered further.
  • Stud frame gap max. of 600mm.
  • All the materials above needs to be reconfirmed by the Contractor/ Applicators regarding bookings material inquiry order.
  • Exclude waste material.

Information provided are for reference purpose only and due care has been taken to ensure accuracy at time of publication. Products, specifications and requirements may vary according to geographical locations and applications. As each project is unique, please contact your local Jayaboard representative for further assessment.
